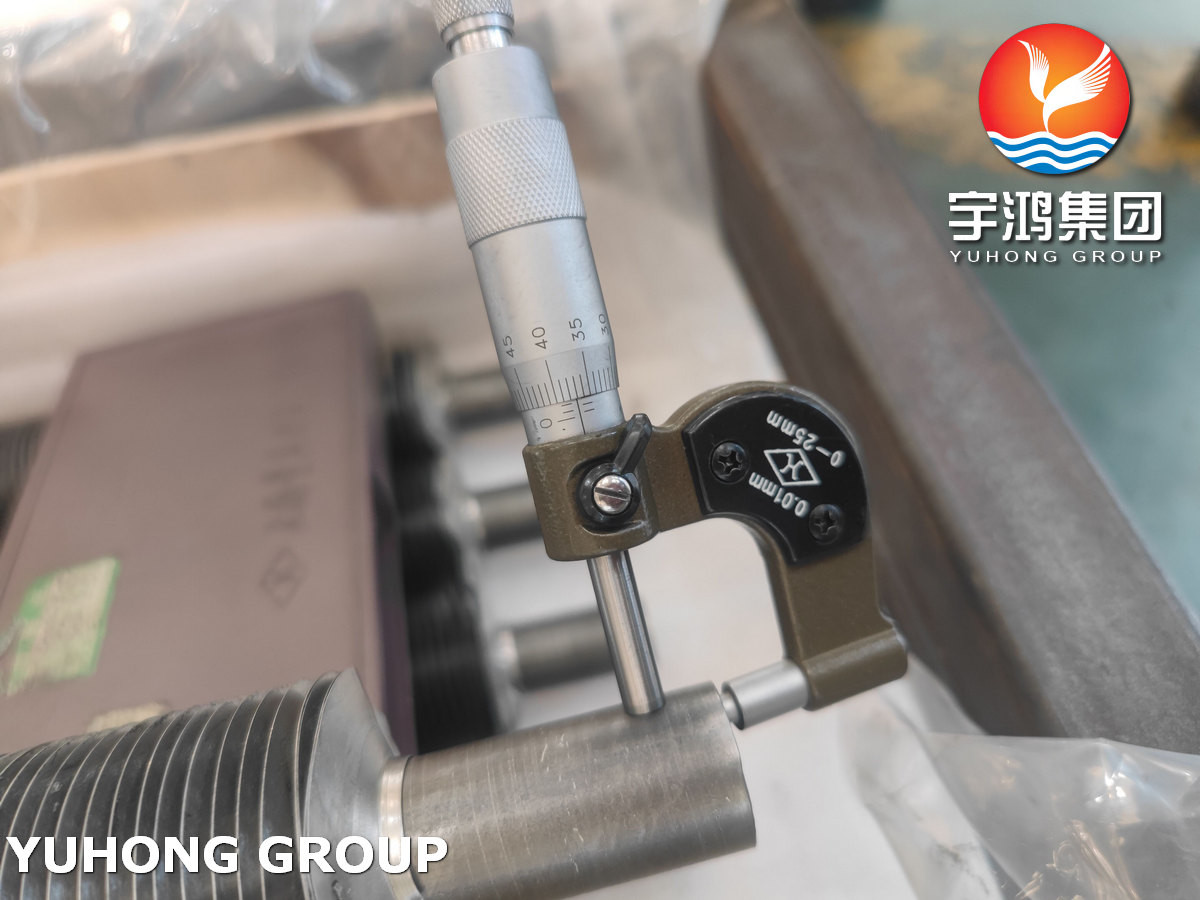

ASTM A179 Wound Fin Tube L Type With Material AL 1060 For Air Cooler Boiler

  • 1
  • 2
  • 3

Brand Name : YUHONG

Model Number : L Type Fin Tube

Certification : ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Place of Origin : China , Korea

MOQ : 1 PC

Price : 1 - 10000 USD

Payment Terms : L/C, T/T

Supply Ability : 10000 Tons/Month

Delivery Time : 5 - 90 Days

Packaging Details : Ply - Wooden Case + Iron Frame

Features : High Efficiency, Corrosion Resistance, Easy To Clean

Type : L/LL/KL Type Fin Tube

Base Tube Standard : ASTM A179, ASME SA179

Fin Materials : Aluminium, Copper

Bare Tube Diameter(MM) : 16-63 Mm

Fin Pitch(MM) : 2.1-5 Mm

Fin Height(MM) : <17 Mm

Fin Thick(MM) : ~0.4 Mm

Use : Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air Cooler, Etc

Highlight : Al1060 Spiral Wound Fin Tubes, L Type Spiral Wound Fin Tubes, ASME SA179 Spiral Wound Fin Tubes

Contact Now

ASTM A179 Wound Fin Tube L Type With Material AL 1060 For Air Cooler,Bolier

The ASTM A179 Wounded Fin Tube design significantly enhances the surface area of the tube, improving heat exchange efficiency and enabling effective thermal transfer in a compact space. AL1060 aluminum alloy has excellent corrosion resistance, making it suitable for various chemical environments and extending the lifespan of the tubes ,making it suitable for various chemical environments and extending the lifespan of the tubes.

The L-fin structure enables high-efficiency heat exchange in limited spaces, making it suitable for compact equipment layouts.These tubes are widely applicable in refrigeration, air conditioning, and petrochemical industries, meeting various operational demands.

Chemical positions:

Grade

 C Si Mn P S Mo Cr V
A179 0.06-0.18 / 0.27-0.63 ≤0.035

≤0.035

 / /

/

Mechanical Properties of ASTM A179/A179M:

Tensile
Strength (Mpa)		 Yield
Strength (Mpa)
Elongation
(%)
 Hardness
(HRB)
≥325 ≥180 ≥35

≤72

Specifications For Various Types Of Finned Tubes:

Yuhong Group Fin Tube Specification
Type Description Base tube Fin specification (mm)
O.D. (mm) Fin pitch Fin height Fin thick
Embedded G-type fin tube 16-63 2.1-5 <17 ~0.4
Extruded Single metal combined metal 8-51 1.6-10 <17 0.2-0.4
Low fin tube t-type fin tube 10-38 0.6-2 <1.6 ~0.3
Bamboo tube corrugated tube 16-51 8~30 <2.5 /
Wound L/KL/LLtype fin tube 16-63 2.1-5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
H/HH type fin tube 25-63 8~30 <200 1.5-3.5
Studded fin tube 25-219 8~30 5~30 φ5-20

Advantages:

  • High Heat Exchange Efficiency
  • Corrosion Resistance
  • Lightweight Design
  • Excellent Thermal Conductivity
  • Space Efficiency
  • Versatile Applications
  • Ease of Maintenance

Applicatons:​

  • Plate heat exchangers
  • Shell-and-tube heat exchangers.
  • Industrial cooling towers
  • Circulation cooling systems
  • Central air conditioning systems
  • Split air conditioners
  • Boilers
  • Reactors
  • Evaporators
  • Heat Pump Systems

ASTM A179 Wound Fin Tube L Type With Material AL 1060 For Air Cooler Boiler
